Add Points and their Replled Labels to an ordiggplot Graph

Function adds points to the exact position of the ordination score with a label, but labels are repelled from each other to avoid over-plotting. In very congested areas, the labels are completely omitted.

Usage

geom_ordi_repel(
  score,
  data,
  box = FALSE,
  points = TRUE,
  point.params = list(),
  text.params = list(),
  ...
)

Arguments

score: Ordination score added to the plot.
data: Alternative data to the function that will be used instead of score. This function does not handle vegan::envfit() results.
box: Draw a non-transparent box behind the text (logical).
points: Draw points (logical).
point.params, text.params: Parameters to modify points or their repelled text labels.
...: other arguments passed to ggrepel::geom_text_repel() and ggrepel::geom_label_repel().

Value

Returns ggrepel layers geom_text_repel or geom_label_repel and ggplot2 layer geom_point (optionally).

Author

Jari Oksanen

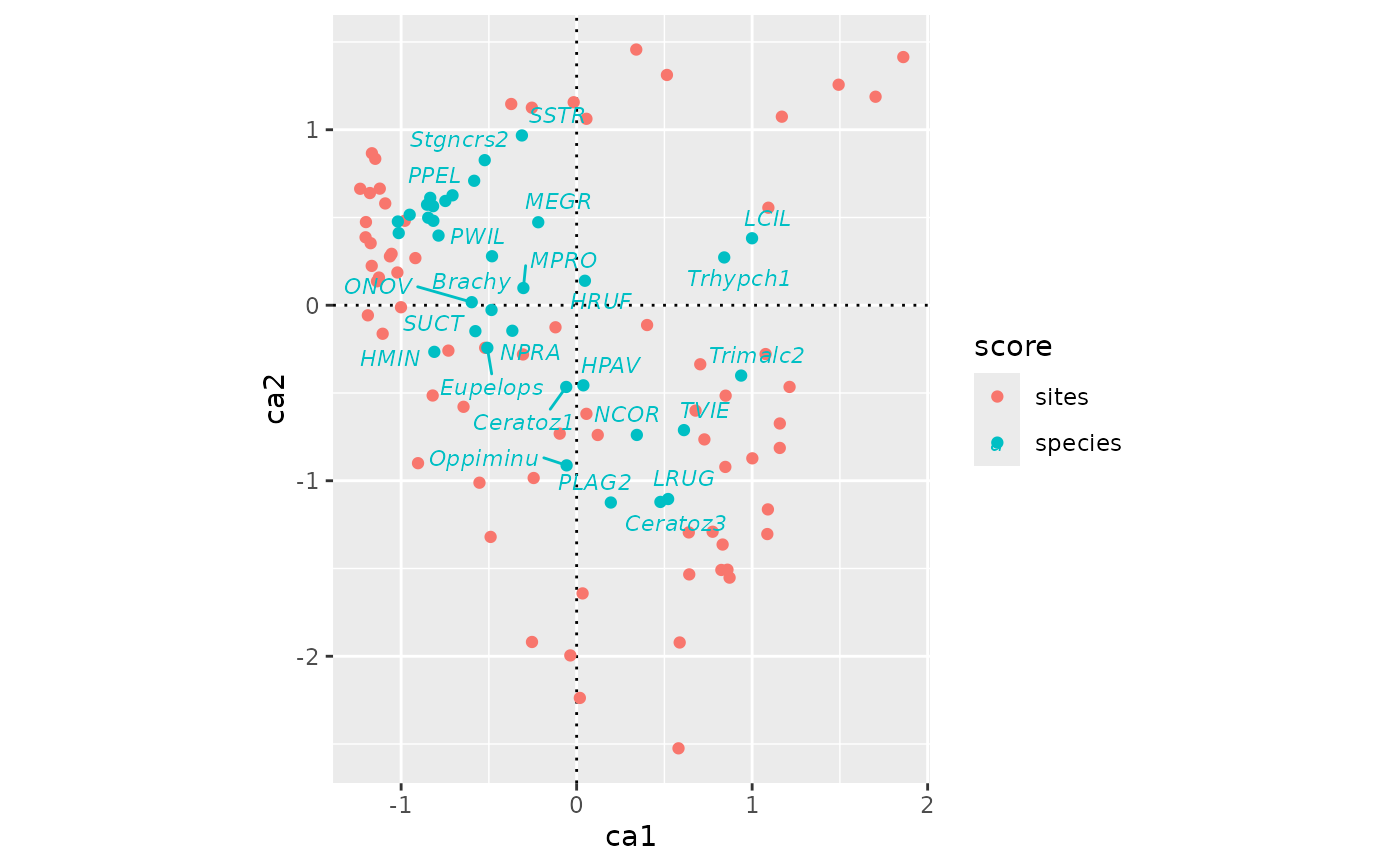

Examples

library(vegan)
data(mite, mite.env, package = "vegan")
mod <- cca(mite)
ordiggplot(mod) +
  geom_ordi_axis() +
  geom_ordi_point("sites") +
  geom_ordi_repel("species",
    text.params = list(size=3, fontface = "italic"))
